When individuals start a new activity, one of the first things they discover is that FPV drone don’t have particularly long battery lives. The subject of how to extend FPV flying time is a valid one, and that is what we are investigating today. The length of your flight is affected by a few obvious factors. To extend your flight duration, we’ll look into these possibilities as well as those you might not have thought about.
1. Exploring FPV Drones for Sale
To enhance your FPV experience, consider browsing platforms like MEPSKING, which offers a variety of FPV drones for sale, along with kits and parts for customization. Choosing the right drone or parts can significantly affect your flight times and overall performance, allowing you to enjoy longer sessions in the air.
2. How Long Can an FPV Drone Fly?
An FPV drone will always discharge a battery at a different rate than other drones due to the power of the motor, the VTX, the ESC, the camera, and other components. For all FPV drones, there are a variety of batteries available. These LiPo batteries are typically known to range from 1 to 6 seconds and beyond, with capacities ranging from a few hundred milliamperes to many amps. However, an FPV drone only utilizes particular battery types with high discharge rates, usually under 6s although with varying amps. A multi-cell battery will increase the voltage to each other while maintaining the same amps per hour because a particular battery cell has an average voltage of 3.7 volts and a maximum of 4.2 volts when charged. For instance, a 4S battery has four cells, which means that the nominal charge is 14.8 volts (4 x 3.7 volts).
LiPO batteries used in FPV drones operate at different voltages, thus all of your drone’s parts—ESC, motor power, FC, and so forth—must be compatible with that range. Higher voltage batteries typically power an FPV drone’s more powerful motors. However, this increases the drone’s power and the distance it can fly. The overall battery capacity, measured in amps hour (Ah) or milliamperes (mAh), must be considered in this case.
A LiPo battery gets heavier and bulkier as its mAh increases, therefore the FPV drone needs more push to be lifted by its motors. Finding a balance is crucial for using various batteries. In contrast, lighter LiPo batteries are frequently used for racing FPV (although they typically offer a shorter flight time of 3 minutes), average weight batteries for freestyle, and bigger batteries for long-distance flights, etc.
Weaker motors on an quadcopter with a greater (heavier) mAh battery can stress the motor and ESC, which can reduce the drone’s throttle, overtax the battery, and potentially increase the risk of internal component burnout in addition to reducing flying time. The FPV drone’s maximum power output from the battery is greatly influenced by the discharge rate, which may have little bearing on the entire flight length.
3. How to Extend the Flight Time of an FPV Drone?
3.1 Shed Off Some Weight
The more power or thrust needed to lift your FPV drone, the heavier it will be. Thus, lowering the payload might dramatically lengthen your drone’s flight time. The most obvious choice would be to choose lighter materials, such as bolts and nuts, motors, and battery. You may save the most weight by using the battery, which is likely the heaviest part of your quadcopter. The motors are the next item to consider since they are the second-heaviest parts. Even the smallest parts, such as the bolts and nuts, can have their weight reduced, which may surprise you. When compared to their steel equivalents, titanium bolts and nuts are over 50% lighter.
Additionally, you want to think about reducing the utilization of extraneous accessories. For instance, if you are flying outside, are the prop guards really necessary? Or are the LED stripes on your drone truly necessary? Remove them from your quadcopter if you don’t need them. Consider that every gram matters! Bolt and nut, LED, and other items might seem small and trivial, but when used together, they have a big impact. Reduce your weight as much as you can while still being reasonable.
3.2 Maintain an Economical Speed
The length of the flight is directly related to the drone’s speed. The FPV drone’s flying time will be shorter the faster it moves. Flying at a slower speed will allow you to increase the flight time of a quadcopter. Additionally, this will enable you to save battery life.
The FPV drone’s battery will run out considerably more quickly if you fly it aggressively than it would if you flew it evenly and slowly. All manufacturers advise using a quadcopter at a reasonable speed to maximize battery life.
3.3 Choose a Conservative Flight Mode
There are numerous flight modes for drone FPV models. The transmitter sensitivity affects these. You should select the less aggressive flying option, which is the lower sensitivity flight mode, to extend the FPV battery flight time.

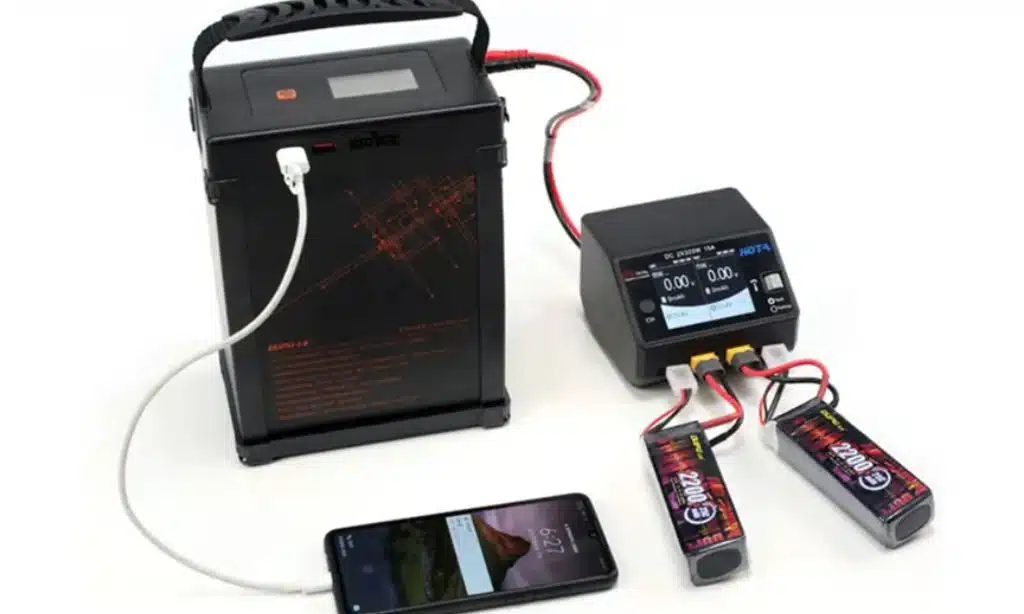

3.4 Choose a Big Battery
The majority of FPV drone models have mid-size batteries, which limit their average flying time to seven minutes. Buying a battery with a greater mAh rating will prolong your flight. However, avoid using a large battery because it makes the drone heavier, which increases energy consumption and reduces flight time.
Look at the energy density when you want to find a battery with more capacity to extend flying time. The battery’s voltage and capacity are multiplied and divided by weight to determine energy density. The more energy a battery can store per gram, the better its energy density.
The replacement batteries you should select have a bigger capacity and the same, if not higher energy density if you want to increase your flying time and prolong your time spent lounging in the sun.
3.5 Do Not Allow the Battery to Drain Completely
It is strongly advised that you avoid depleting the drone’s battery. Make sure to avoid operating the drone while the battery is less than 20%. Thus, the battery’s lifespan is shortened.

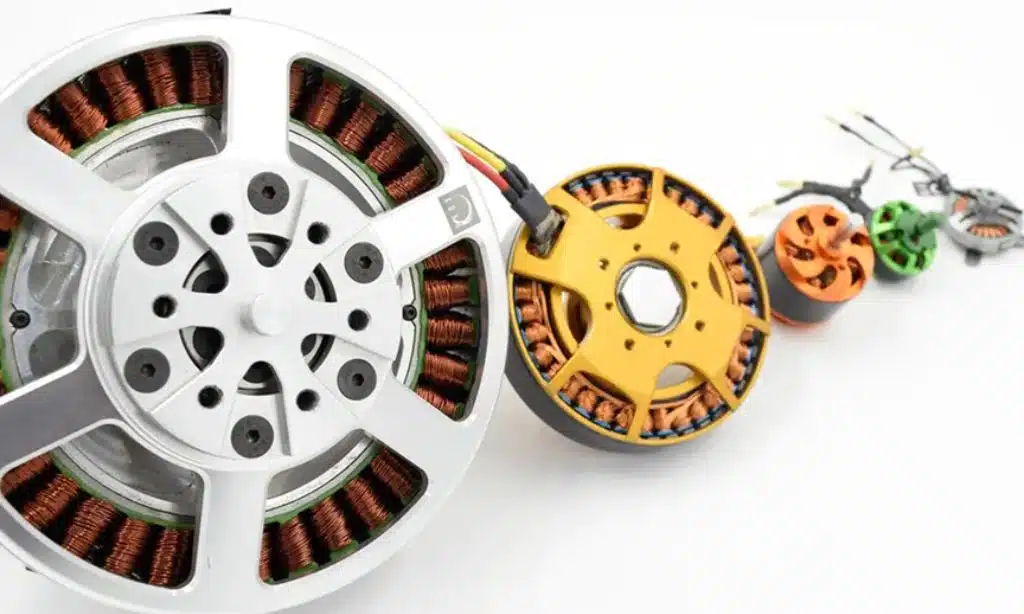

3.6 Choose the Right Motors
It is generally agreed upon that lower KV motors rated at higher voltages offer a superior alternative for efficient flying. They can take advantage of these because they can work with greater voltage battery packs and are better suited to swinging bigger props. Control also becomes simpler while operating at a lower KV rating since you have more control over the low throttle range. The cost of FPV motors can vary greatly depending on their quality. In general, higher-quality motors are more effective as well as lasting longer. It is important to take both their weight and efficiency into account when choosing motors for longer flight times.

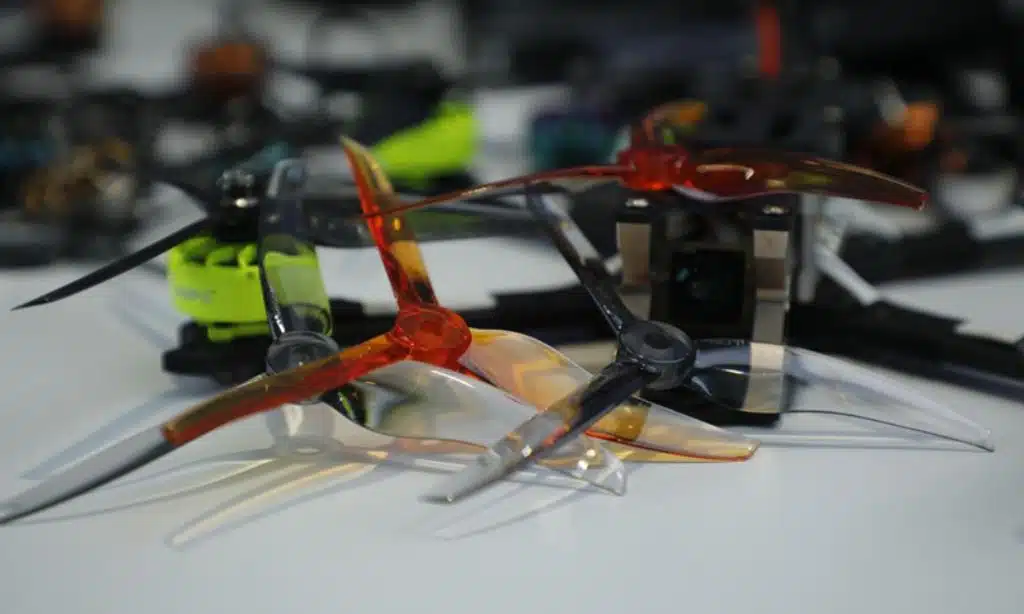

3.7 Upgrade Propellers
Your drone’s propellers will be less effective in the majority of circumstances the more blades it has and the higher its pitch. Each prop blade tip wastes energy by moving through the air with following vortices. More energy is lost the more blades your prop has. Bi-bladed or two-bladed props are said to be the most effective widely accessible choice. The prop pitch should be chosen dependent on how quickly you are flying; this may require some trial and error to get just right. The less air the prop has to push aside when hovering or moving slowly, the flatter/lower pitch it has.
A 5051 prop is a nice illustration of something that wouldn’t work well for hovering. A significant quantity of energy is lost since it has to work hard to push air out of the way in addition to pushing down for thrust. In this situation, a prop with a lower pitch, like a 5030 or 5040, might be preferable. The 5051 option would be preferable for flights that move quickly. The prop blade’s angle in this case allows it to slice through the air to produce thrust without the air getting in the way too much.
3.8 Fly in the Appropriate Conditions
If you fly your FPV drone outside, you need think about the ideal flying environment. Avoid driving in the rain or wind. The drone experiences more difficulty while turning when it is flying against the wind. Higher resistance equals more power consumption, which causes your battery to discharge more quickly. The drone’s battery is also harmed by rainy circumstances.
3.9 Warm Up before Flying
LiPo batteries perform best between 77 and 95 °F (25 and 35 °C). The LiPo’s chemical activity reduces as the temperature drops. As a result, discharge rates are reduced, which is more pronounced as the temperature drops. Before you fly, you can warm up your LiPo using a LiPo warm bag to get the maximum performance out of them. To avoid the batteries from being harmed, take care not to make them too hot.
